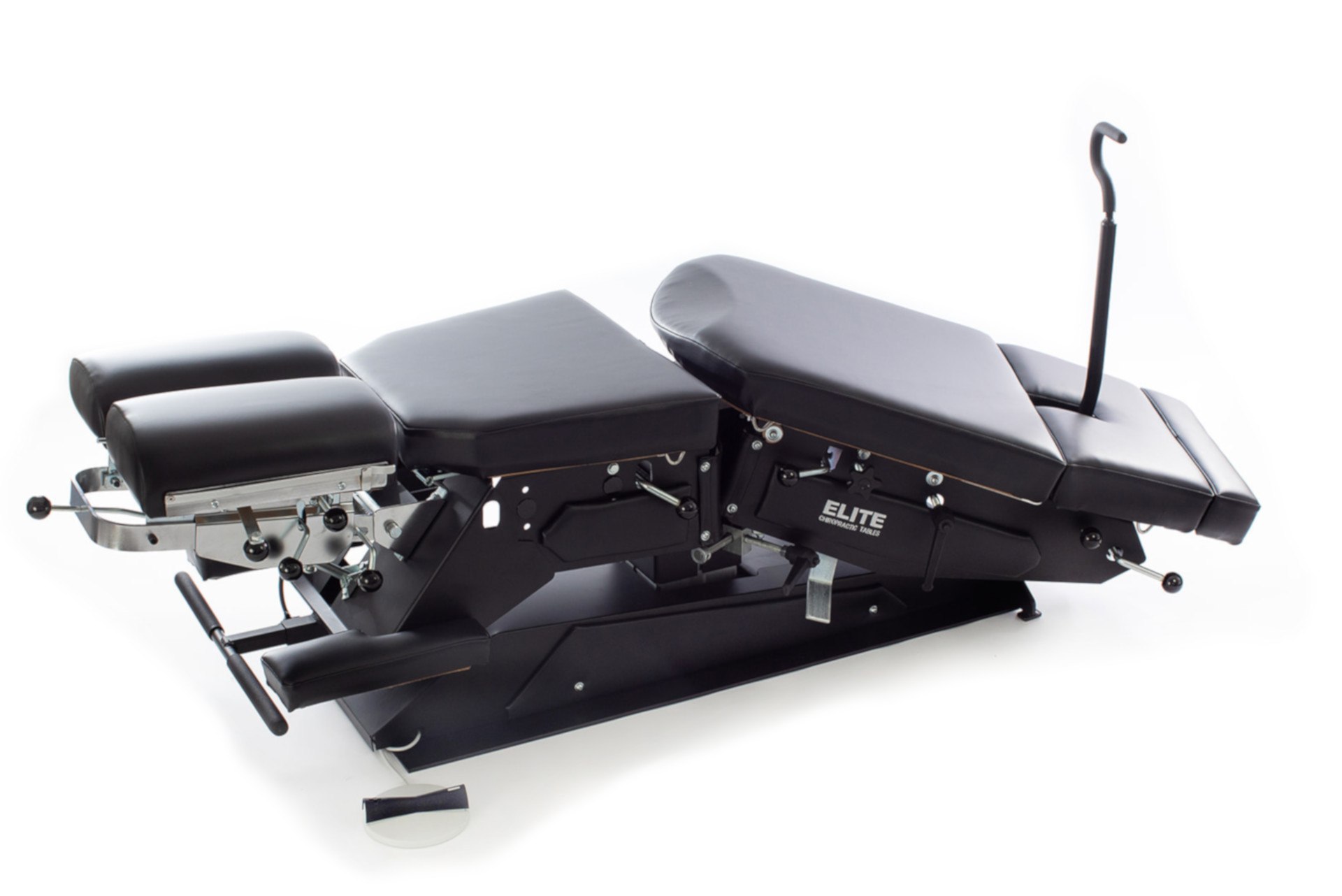

Manual Flexion Table

Model FLEX

Starting at $3,330.00 USD

Features & Options

Manual Flex

  • Smooth range of Lateral Flexion (20 degrees)
  • Deep Flexion depth (22-25 degrees)
  • Able to perform figure 8 (ROM)
  • Pelvic cushion will drop in either a Flexed / Neutral / Extended position
  • Table can be locked while in a flexed position
  • Removable flexion control handle offers 3 different height adjustments and can be removed when not in use

Axial Rotation Upgrade

  • Manual rotation can be locked in any position.
  • User friendly locking handle.
  • Can be added to Manual Flexion, Auto Flexion or Auto Manual Flexion.
  • 22 degree of rotation.

Electric Distraction Upgrade

  • Electric distraction of six inches
  • Upgrade available on all Flexion tables

* Please note when electric distraction feature is added, the pelvic cushion or knee break will not have a peaking mechanism when ordered on the following tables: Manual Flexion, Auto Flexion, HiLo Flexion and Auto Manual.

Elevation Upgrade

  • Motorized elevation adjust table for comfortable working position
  • Eight inches of elevation height adjustment controlled by a foot switch
  • Electric motor is powerful, quiet and smooth, rated to 230 kg. (500 lbs.)+

Cordless Power

  • Same lift performance
  • Full week from one charge
  • Optional second battery pack
  • Position your table anywhere
  • No extension cords the clients can trip on

Headrest

  • Multi-directional headpiece – Tilt, Elevation and Spread
  • Cervical headpiece can be raised up to 6” above cushions
  • Cervical drop (forward motion oriented or straight down motion)
  • HP-FLEX Headpiece – Includes all the features of our standard headpiece plus flexion and traction
  • HP-FLEX-L Headpiece – Includes all the features of the HP-FLEX Headpiece plus lateral flexion

Drops

  • Easy drop foot cocking pedal on both sides of table
  • Pelvic cushion will drop in either a Flexed / Neutral / Extended position
  • Customizable with your choice of drops: cervical, thoracic (full or upper & lower), and pelvic
  • Thoracic drop available with abdominal breakaway feature
  • Easy access to adjustment controls

Cushion

  • 21″ wide table surface
  • Elevating thoracic and Pelvic/Lumbar sections (each tilt upward to 15 degrees)
  • Knee break (adjusts up 20 degrees, down 10 degrees) with ankle rest extension
  • Ankle rest extension
  • Variable cushion position

Construction

  • Table base durable powder coat finish in your choice of color
  • Sturdy welded steel construction
  • Low maintenance, dependable function

Manual Flexion

Manual flexion enables the doctor to perform figure 8 ROM. The smooth lateral flexion range is 20 degrees, and flexion depth of 22 to 25 degrees of depth. The table can be locked while flexed, and the removable flexion control handle offers three different height adjustments. The pelvic cushion on the table will drop in either the flexed, neutral or extended position.

Manual Flexion can be locked in place

Axial Rotation

Rotate and lock the table in any position with the locking handle. Axial rotation provides up to 22 degrees of rotation.

Electric Elevation

Adjust your table to the ideal height with the tap of a footswitch. The table has an elevation range of eight inches, is rated to 230 kg. (500 lbs.)+

Removable Handle

The flexion handle can be removed while not in use.
